Converting Mathpix Markdown (MMD) with Mathpix Python SDK

The Mathpix Python SDK provides functionality to convert Mathpix Markdown (MMD) into other formats, such as PDF, DOCX, and standard Markdown.

Code Example

from mpxpy.mathpix_client import MathpixClient

client = MathpixClient(
    app_id="your-app-id",
    app_key="your-app-key"
)

# Define the Mathpix Markdown input with headers, math, and a table

mmd_input = """
## Part I

## Linear Regression

To make our housing example more interesting, let's consider a slightly richer dataset in which we also know the number of bedrooms in each house:

| Living area $\\left(\\text{feet}^{2}\\right)$ | \\#bedrooms | Price (1000\\$s) |
|:---:|:---:|:---:|
| 2104 | 3 | 400 |
| 1600 | 3 | 330 |
| 2400 | 3 | 369 |
| 1416 | 2 | 232 |
| 3000 | 4 | 540 |
| $\\vdots$ | $\\vdots$ | $\\vdots$ |

To perform supervised learning, we must decide how we're going to represent functions/hypotheses $h$ in a computer. As an initial choice, let's say we decide to approximate $y$ as a linear function of $x$:

$$
h_{\\theta}(x) = \\theta_{0} + \\theta_{1} x_{1} + \\theta_{2} x_{2}
$$

In the case where we have only one training example $(x, y)$, so that we can neglect the sum in the definition of $J$, we have:

$$
\\begin{aligned}
\\frac{\\partial}{\\partial \\theta_j} J(\\theta)
&= \\frac{\\partial}{\\partial \\theta_j} \\frac{1}{2} \\left(h_\\theta(x) - y\\right)^2 \\\\
&= \\left(h_\\theta(x) - y\\right) \\cdot \\frac{\\partial}{\\partial \\theta_j} \\left(h_\\theta(x) - y\\right)
\\end{aligned}
$$
"""

# Convert MMD to PDF (you can also use "docx", "html", or "md")
conversion = client.conversion_new(
    mmd=mmd_input,
    convert_to_pdf=True,
    convert_to_docx=True,
    convert_to_md=True,
)

# Wait for the conversion to complete
conversion.wait_until_complete(timeout=30)

# Get the PDF outputs
pdf_output_path = conversion.to_pdf_file(path='output/sample.pdf')
# Get the Markdown outputs
md_output_path = conversion.to_md_file(path='output/sample.md')
md_text = conversion.to_md_text() # is of type str
# Get the DOCX outputs
docx_output_path = conversion.to_docx_file(path='output/sample.docx')
docx_bytes = conversion.to_docx_bytes() # is of type bytes

Use to_* methods to either get the result in memory or save it directly to a file.
Saving to file always requires setting the path explicitly — the SDK will not guess or generate filenames automatically.
All folders in the provided path are created automatically if they do not exist.
If you only need in-memory content (e.g. for sending over a network or writing to a DB), use the to_*_bytes() or to_*_text() methods.
You can also render PDF from LaTeX using convert_to_latex_pdf=True. This uses Mathpix's LaTeX renderer instead of MMD.

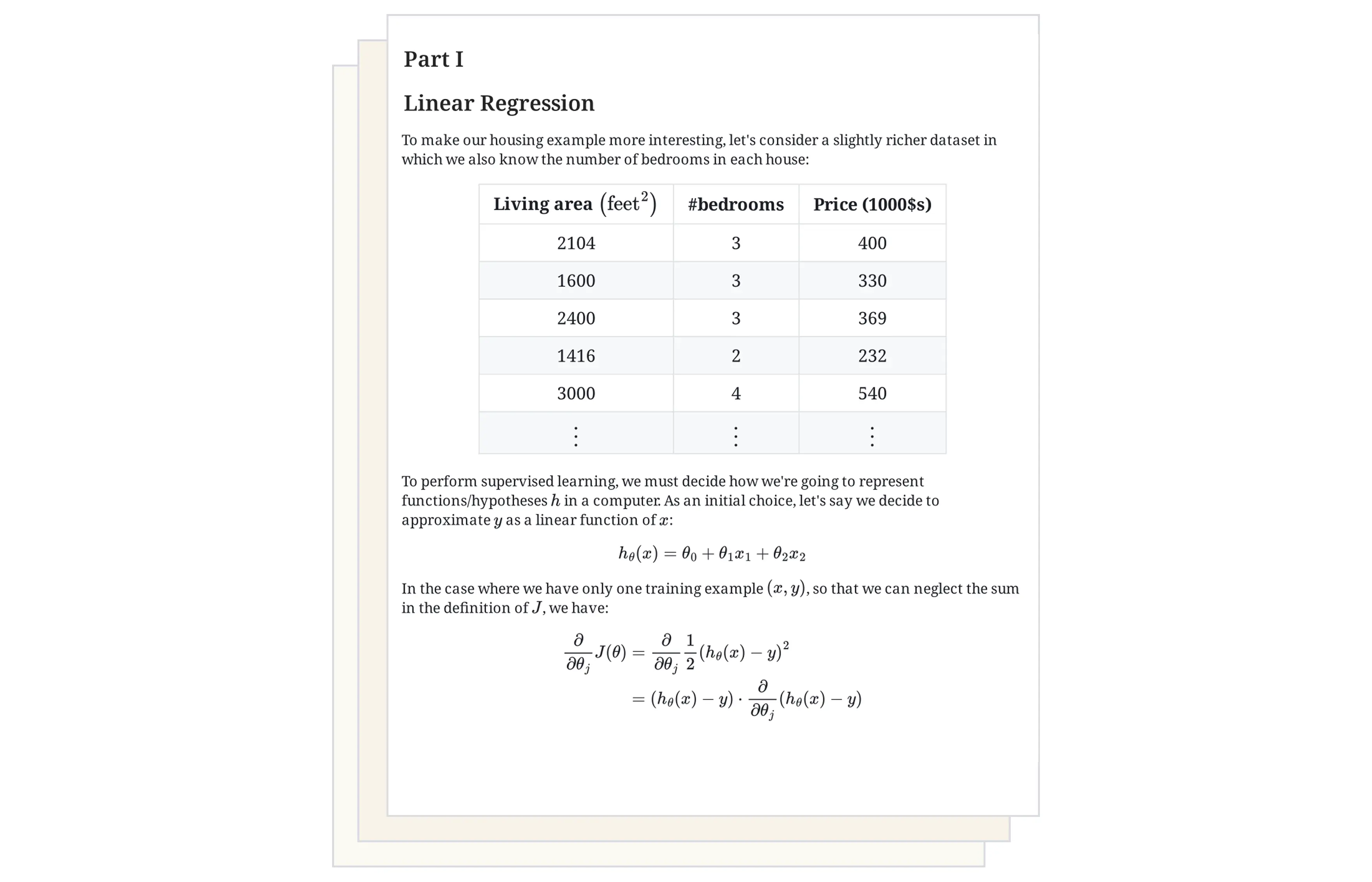

Rendered Output Example: From MMD to PDF

This view shows the final PDF output generated from Mathpix Markdown input. It demonstrates how headers, LaTeX equations, and tables are rendered using the Mathpix SDK.

Output Formats

PDF
Saved to: output/sample.pdf
Ideal for print-ready rendering from Mathpix Markdown input.
Markdown
Saved to: output/sample.md
Also available in-memory using conversion.to_docx_bytes() — useful for returning as a file in web apps.
DOCX
Saved to: output/sample.docx
Also available as bytes using conversion.to_docx_bytes().

Other formats such as HTML and LaTeX ZIP are supported as well — see the full method list below.

Conversion Class Documentation

Properties

auth: An Auth instance with Mathpix credentials.
conversion_id: The unique identifier for this conversion.
convert_to_docx: Optional boolean to automatically convert your result to docx
convert_to_md: Optional boolean to automatically convert your result to md
convert_to_tex_zip: Optional boolean to automatically convert your result to tex.zip
convert_to_html: Optional boolean to automatically convert your result to html
convert_to_pdf: Optional boolean to automatically convert your result to pdf
convert_to_latex_pdf: Optional boolean to automatically convert your result to pdf containing LaTeX

Methods

wait_until_complete: Wait for the conversion to complete.
conversion_status: Get the current status of the conversion.
to_docx_file: Save the processed conversion result to a DOCX file at a local path.
to_docx_bytes: Get the processed conversion result as DOCX bytes.
to_md_file: Save the processed conversion result to a Markdown file at a local path.
to_md_text: Get the processed conversion result as a Markdown string.
to_mmd_file: Save the processed conversion result to a Mathpix Markdown file at a local path.
to_mmd_text: Get the processed conversion result as a Mathpix Markdown string.
to_tex_zip_file: Save the processed conversion result to a tex.zip file at a local path.
to_tex_zip_bytes: Get the processed conversion result in tex.zip format as bytes.
to_html_file: Save the processed conversion result to a HTML file at a local path.
to_html_bytes: Get the processed conversion result in HTML format as bytes.
to_pdf_file: Save the processed conversion result to a PDF file at a local path.
to_pdf_bytes: Get the processed conversion result in PDF format as bytes.
to_latex_pdf_file: Save the processed conversion result to a PDF file containing LaTeX at a local path.
to_latex_pdf_bytes: Get the processed conversion result in PDF format as bytes (with LaTeX).
